Hi guys,
First I want to say what a great product you have develop for the powershell community. Thank you!!
For my question. I’ve been looking around including this forum to see if there’s a way to display icon or images within a table row. I tried using published folder but seems not work.
Hopefully this makes sense. Any assistance is very much appreciated.
Product: PowerShell Universal
Version: 1.4.6
Can you share your table code? We should be able to help.
Sure. Please see below. I also added screenshot of my published folder.
$dt = New-Object System.Data.DataTable
$dt.Columns.Add("Device")
$sensorrows = $prtgdatas.sensors | Where {$_.group -eq "PROD SERVICES"}
foreach($sensorrow in $sensorrows)
{
if (!($dt.Columns.Contains($sensorrow.sensor)))
{
$dt.Columns.Add("$($sensorrow.sensor)")
}
}
$devices = $prtgdatas.sensors | Where-Object {$_.group -eq "PROD SERVICES"}
foreach ($device in $devices)
{
$dr = $dt.NewRow()
$dr["Device"] = $device.device
$devicedatas = $prtgdatas.sensors | Where {$_.group -eq "PROD SERVICES" -and $_.device -eq $device.device }
if (!($dt.Select("Device = '" + $device.device + "'")))
{
foreach ($devicedata in $devicedatas)
{
switch ($devicedata.sensor)
{
"Ping"
{
$dr["Ping"] = if($devicedata.status -eq "Up")
{
"/img/up.png"
} if($devicedata.status -eq "Down")
{
"/img/down.png"
} if($devicedata.status -eq "Warning")
{
"/img/warning.png"
} if($devicedata.status -like "Pause*")
{
"/img/pause.png"
}
break
}
"Https"
{
$dr["HTTPS"] = if($devicedata.status -eq "Up")
{
"/img/up.png"
} if($devicedata.status -eq "Down")
{
"/img/down.png"
} if($devicedata.status -eq "Warning")
{
"/img/warning.png"
} if($devicedata.status -like "Pause*")
{
"/img/pause.png"
}
break
}
"Http Advanced"
{
$dr["http advanced"] = if($devicedata.status -eq "Up")
{
"/img/up.png"
} if($devicedata.status -eq "Down")
{
"/img/down.png"
} if($devicedata.status -eq "Warning")
{
"/img/warning.png"
} if($devicedata.status -like "Pause*")
{
"/img/pause.png"
}
break
}
}
}
$dt.Rows.Add($dr)
}
}
$Data = try { $dt | select-object * } catch {}
$Columns = @(
foreach ($col in $dt.Columns)
{
New-UDTableColumn -Property $col.ColumnName
}
)
New-UDTable -Id 'prodsrvs' -Data $Data -Columns $Columns -Title 'Prod Services' -ShowSearch -ShowPagination -PageSizeOption @(5,10,20)
Thanks
If images are not possible, how can I then manipulate the text within the cell based on value for example if UP then change color to green or background to green.
Hey @irortiz,
You can certainly do images. For the columns you’d like images in, do something like this.
New-UDTableColumn -Property "myColumn" -Render {
New-UDImage -Url $EventData.myColumn
}
@adam That’s kool but I does not work in my scenario. New-UDImage as you showed in the example takes the column and insert a pic to each which is awesome. But when I try to use it to only apply if the status of the is “UP”, it still attempt to apply the image to every single cell. Below is a screenshot and snippet:
$Data = try { $dt | select-object * } catch {}
$Columns = @(
foreach ($col in $dt.Columns)
{
New-UDTableColumn -Property $col.ColumnName -Render {
New-UDImage -Url {
foreach ($r in $dt.Rows)
{
if($r[1] -eq "Up")
{
"https://img.icons8.com/cotton/64/000000/checkmark.png"
}
}
}
}
}
)

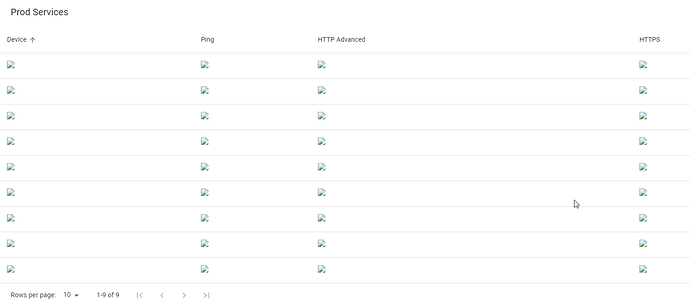

New-UDTable -Id 'prodsrvs' -Data $Data -Columns $Columns -Title 'Prod Services' -ShowSearch -ShowPagination -PageSizeOption @(5,10,20)@adam I was able to get the data to display in the table but for some reason the New-UDImage does not load the image when I use variable. Below is snippet and screenshot:
$Columns = @(
New-UDTableColumn -Property Device -Title Service
New-UDTableColumn -Property Ping -Render {
New-UDImage -Url $dt.Ping
}
)
New-UDTable -Id 'prodsrvs' -Data $Data -Columns $Columns -Title 'Prod Services'
** Update snippet code
Thanks
Never mind. I finally understood.
I was thinking the variable you provided was an example and not an actual variable. Was not looking clearly.
I apologize. Thanks for the help.
