Claims and roles only working for some

PowerShell Universal
1
Product: PowerShell Universal
Version: 2.4.1

Hey @adam

We use a number of roles for authenticated dashboards and using OIDC to authenticate against AAD. Only certain users are getting all claims from roles.ps1.

Users that authenticate only receive:
Operator
Reader
Execute

But other users receive the custom claims from AAD groups, I have tried increasing the MaxRequestHeadersTotalSize but did not work. Do you have any other suggestions?

Thanks

2

Are the users missing claims not receiving any claims from AAD? I would check to see what the $User object looks like in roles.ps1 for those users. It could be a configuration thing with AAD.

I’ll typically just convert it to JSON and export it.

$User | ConvertTo-Json | Out-File "$Env:Temp\$($User.Identity.Name).claims.json"

Typically, the max header issue would cause 500 errors when attempting to login. Any idea what the group membership count looks like for your users?

3

The membership count varies but I would say max group membership ~150. The users that are not getting claims, I do not see any group claims in the json file.

The App Reg does has groupMembershipClaims set to All in the manifest.

4

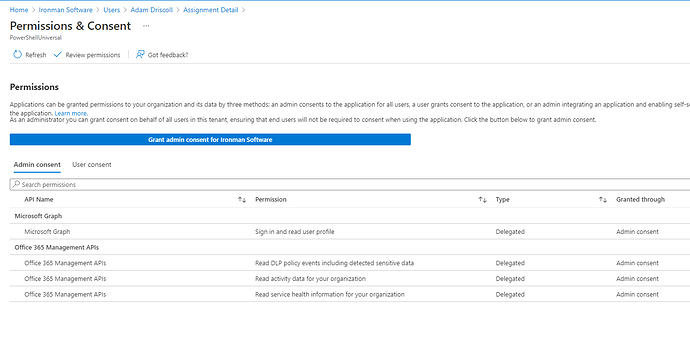

Interesting. Can you check one of the users that isn’t working and see if the Permissions and Consent are correct?

I wonder if it’s possible for a user to not consent to something during the first login and then PSU is failing to retrieve information.

This is what mine defaults look like.

image1411×707 40 KB

image850×500 21.8 KB

5

Assignment Detail looks good on users with many groups associated with PSU Roles and on a user that only has one group assigned to a PSU Role.

In the claims json file, it does show the correct object id and tenant. But looking at it, for user that it is working on I see all of the group claims, but for users that it is not working on, I see this:

{
      "Type": "_claim_names",
      "Value": "{\"groups\":\"src1\"}",
      "ValueType": "JSON",
      "Issuer": "https://sts.windows.net/<tenantId>",
      "Properties": "System.Collections.Generic.Dictionary`2[System.String,System.String]"
    },
    {
      "Type": "_claim_sources",
      "Value": "{\"src1\":{\"endpoint\":\"https://graph.windows.net/<tenantId>/users/<userObjectId>/getMemberObjects\"}}",
      "ValueType": "JSON",
      "Issuer": "https://sts.windows.net/<tenantId>/",
      "Properties": "System.Collections.Generic.Dictionary`2[System.String,System.String]"
    }

Tenant and User Object ID were redacted, but are correct in the json file.

6

@adam

This looks to be a limitation with Azure AD, Group Overage Claim.

Please document the claim that represents group overage · Issue #39289 · MicrosoftDocs/azure-docs (github.com)

That would explain why some users are getting group claims and others are not.

Scroll down a little to Group overage claim

7

Microsoft provides an example of how to handle this:

SampleAzureADAuthentication/Startup.cs at master · mattruma/SampleAzureADAuthentication (github.com)

Specifically, SampleAzureADAuthentication/Startup.cs at 17d24adf0162366aa3758bf919998f15f0b20fd7 · mattruma/SampleAzureADAuthentication · GitHub

Not sure if it would apply to your code, but thought it may be helpful.

8

ahhhh interesting. Thanks for all the info. I’ll open an issue for this. I hadn’t run into this before.

I guess as a work around you could query graph yourself for the time being.

1 Like
9

@adam

Workaround if anyone else comes across this issue.

Add to roles.ps1 for any custom role:

if ($User.Claims.type -eq '_claim_names') {
    Try {
        $AppSettings = Get-Content -Path "$env:UAPath\appsettings.json" |ConvertFrom-Json
        $ClientId = $AppSettings.Authentication.OIDC.ClientID
        $ClientSecret = $AppSettings.Authentication.OIDC.ClientSecret
        $TenantId = ($User.Claims |Where-Object type -eq 'http://schemas.microsoft.com/identity/claims/tenantid').value
        $UserId = ($User.Claims |Where-Object type -eq 'http://schemas.microsoft.com/identity/claims/objectidentifier').value
        $Params = @{
            Uri = "https://login.microsoftonline.com/$TenantId/oauth2/v2.0/token"
            Body = @{
                'client_id' = $ClientId
                'client_secret' = $ClientSecret
                'scope' = 'https://graph.microsoft.com/.default'
                'grant_type' = 'client_credentials'
            }
            Method = 'Post'
            ContentType = 'application/x-www-form-urlencoded'
            ErrorAction = 'Stop'
        }
        $Token = Invoke-RestMethod @Params |Select-Object -ExpandProperty access_token
        $Params = @{
            Uri = "https://graph.microsoft.com/v1.0/$TenantId/users/$UserId/getMemberObjects"
            Headers = @{
                Authorization = "Bearer $Token"
            }
            Method = 'Post'
            ContentType = 'application/json'
            Body = (@{
                securityEnabledOnly = $false
            } |ConvertTo-Json)
        }
        $GroupObjectId = (Invoke-RestMethod @Params).value
        $GroupObjectId -eq '<update to group object id>'
    }
    Catch {
        throw $_
    }
}
else {
    $User.HasClaim('groups', '<update to group object id>')
}
2 Likes
